Materiaal : Hoge Modulus Toray T700 / T800 koolstofvezel
Grootte : 450,470,490.510.530.550 mm
Vork : Karbon Saber Specificeer koolstofvork
Headtube : Recht 1 1 / 8 " tot 1 1 / 2"
Bottom Bracket: BB86.5
Max Tire Clearance : 700 * 38C
Remmontage Type: schijfrem
Dropout : Front 12 * 100mm achterzijde 12 * 142mm
Test Standaard: ISO4210
garantie： 2 jaar

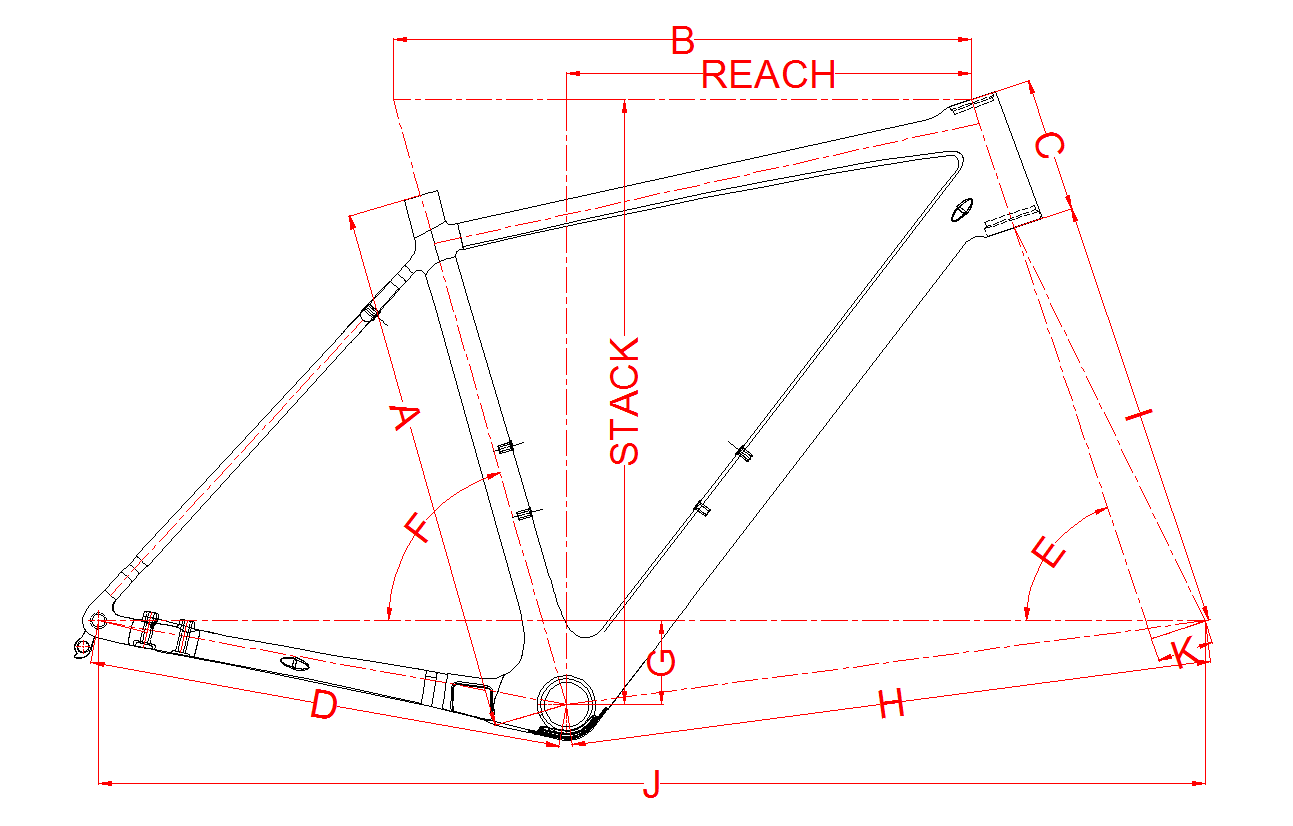

| maat | A | B | C | D | E | F | G | H | I | J | K | bereik | stapel |
| 450 | 450 | 510 | 100 | 440 | 70 ° | 75 ° | 82.5 | 593 | 400 | 1019 | 52 | 367 | 535 |
| 470 | 470 | 520 | 110 | 440 | 70.5 ° | 74.5 ° | 77.5 | 594 | 400 | 1022 | 52 | 375 | 541 |
| 490 | 490 | 535 | 125 | 440 | 71.5 ° | 74 ° | 77.5 | 596 | 400 | 1024 | 52 | 374 | 560 |
| 510 | 510 | 555 | 145 | 440 | 71.5 ° | 73 ° | 75 | 606 | 400 | 1035 | 52 | 379 | 576 |
| 530 | 530 | 570 | 160 | 440 | 71.5 ° | 73 ° | 75 | 621 | 400 | 1050 | 52 | 390 | 591 |
| 550 | 550 | 585 | 185 | 440 | 71.5 ° | 72.5 ° | 72.5 | 631 | 400 | 1061 | 52 | 392 | 612 |
