Materiaal : Hoge Modulus Toray T700 / T800 koolstofvezel
Grootte : 460.490.520.550.580
Headtube : Recht 1 1 / 8 " tot 1 1 / 2"
Vork : Karbon Saber Specificeer koolstofvork
Bottom Bracket: BB86.5
Max Tire Clearance : 29 * 2.25 inch
Remmontage Type: schijfrem
Dropout : Front 12 * 142mm
Test Standaard: ISO4210
garantie： 2 jaar

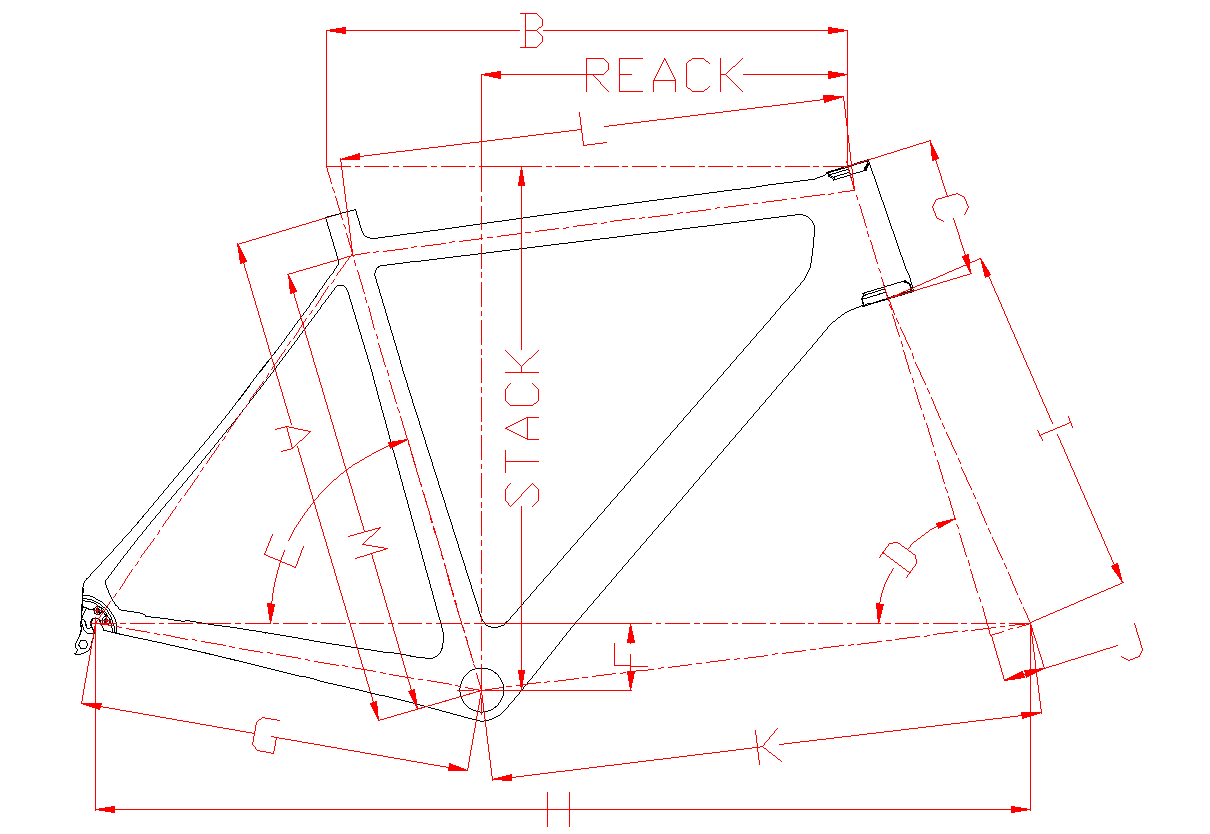

| maat | A | B | C | D | E | F | G | H | I | J | K | L | M | bereik | stapel |
| 460 | 460 | 515 | 110 | 72 ° | 75 ° | 70 | 410 | 970 | 370 | 43 | 571 | 500 | 412 | 378 | 513 |
| 490 | 490 | 530 | 125 | 72.5 ° | 74.5 ° | 70 | 410 | 976 | 370 | 43 | 577 | 515 | 443 | 383 | 529 |
| 520 | 520 | 545 | 145 | 73 ° | 73.5 ° | 70 | 410 | 978 | 368 | 43 | 578 | 530 | 475 | 382 | 548 |
| 550 | 550 | 565 | 165 | 73 ° | 73 ° | 70 | 410 | 993 | 370 | 43 | 593 | 552 | 507 | 392 | 567 |
| 580 | 580 | 590 | 190 | 73.5 ° | 72.5 ° | 70 | 410 | 1007 | 370 | 43 | 607 | 573 | 531 | 403 | 593 |
