Materiaal : Hoge Modulus Toray T700 / T800 koolstofvezel
Grootte : 420,450,480.510.540.570 mm
Vork : Karbon Saber Specificeer koolstofvork
Headtube : Recht 1 1 / 8 " tot 1 1 / 2"
Bottom Bracket: BB86.5
Max Tire Clearance : 700 * 28c
Remmontage Type: velgrem
Dropout : front 9 * 100mm Qr achterzijde 9 * 130mm Qr
Test Standaard: ISO4210
garantie： 2 jaar

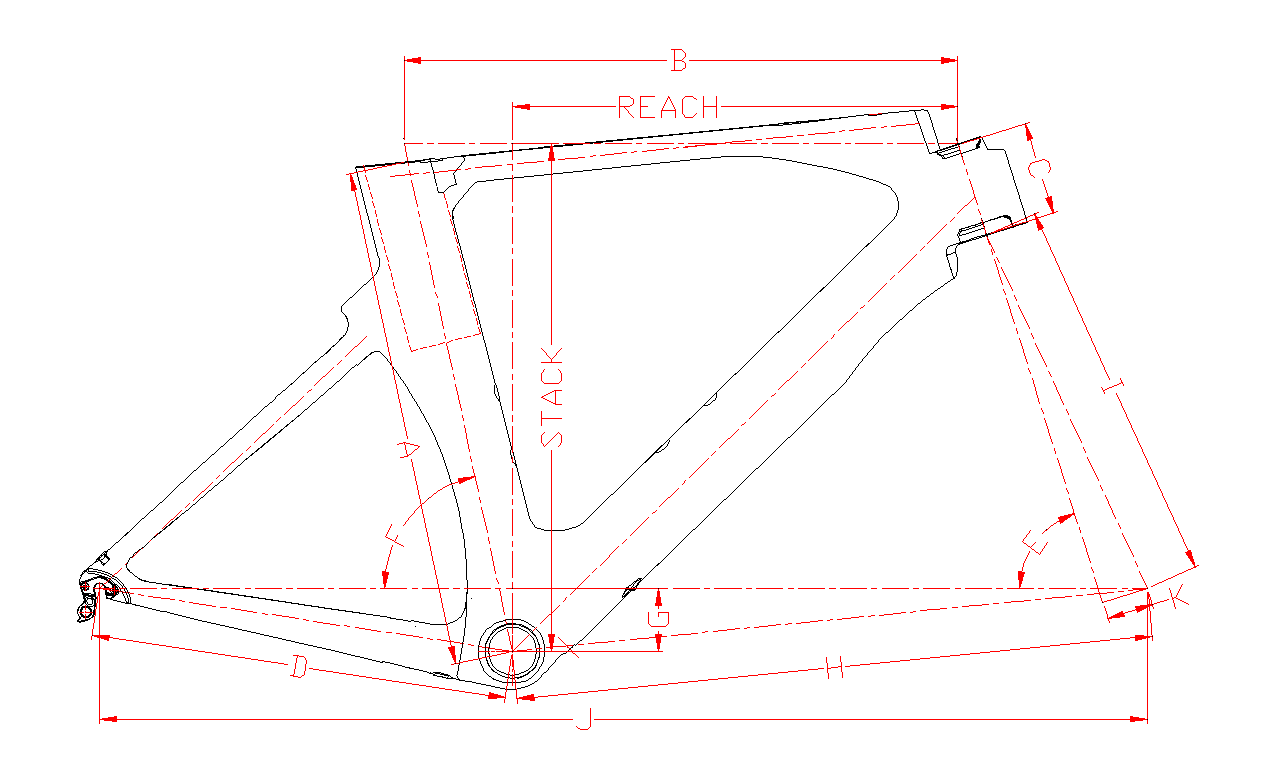

| maat | A | B | C | D | E | F | G | H | I | J | K | bereik | stapel |
| 420 | 420 | 500 | 90 | 400 | 72.5 ° | 78 ° | 69 | 580 | 370 | 970 | 45 | 395 | 494 |
| 450 | 450 | 515 | 90 | 400 | 72.5 ° | 78 ° | 69 | 595 | 370 | 985 | 45 | 410 | 494 |
| 480 | 480 | 530 | 90 | 400 | 72.5 ° | 78 ° | 69 | 611 | 370 | 1004 | 45 | 427 | 494 |
| 510 | 510 | 545 | 100 | 400 | 72.5 ° | 78 ° | 69 | 626 | 370 | 1016 | 45 | 438 | 504 |
| 540 | 540 | 560 | 100 | 400 | 72.5 ° | 78 ° | 69 | 641 | 370 | 1031 | 45 | 453 | 504 |
| 570 | 570 | 575 | 125 | 400 | 72.5 ° | 78 ° | 69 | 658 | 370 | 1048 | 45 | 462 | 527 |
